HVPS124

OEM High Voltage Power Supply

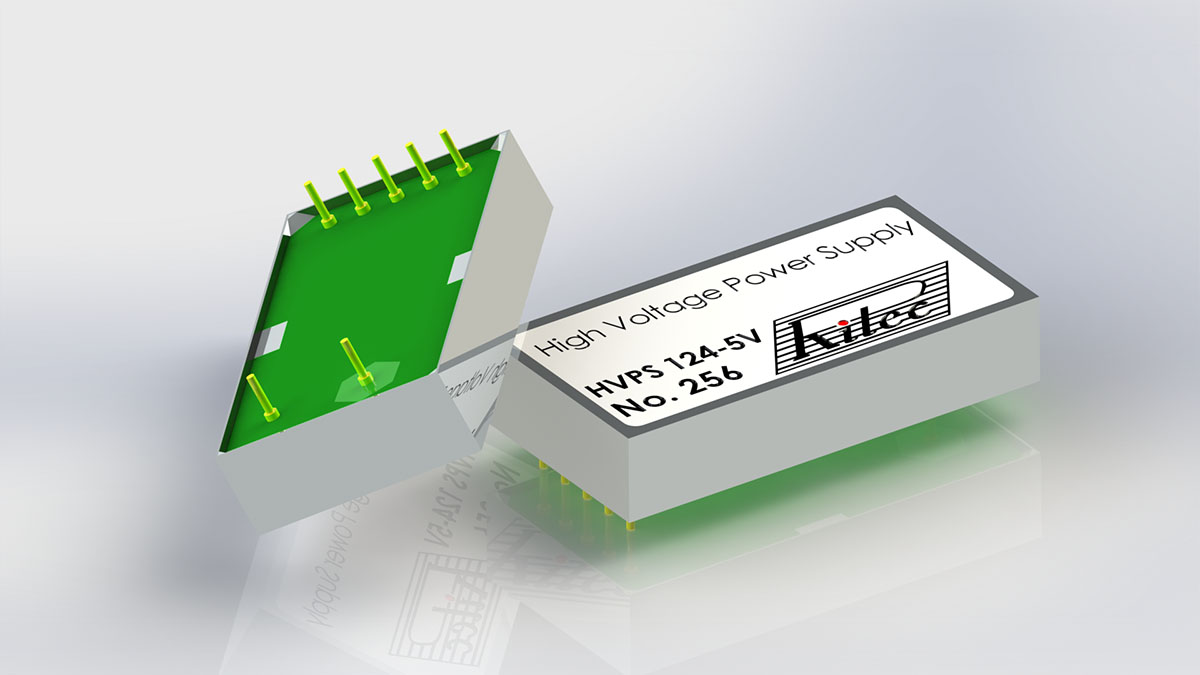

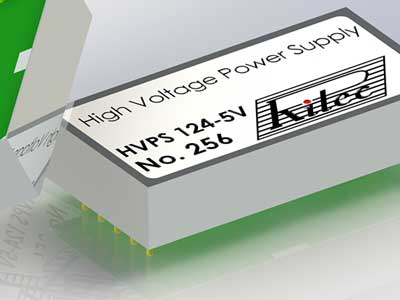

HVPS124

The OEM High-Voltage Power Supply is designed to set the bias voltage of various types high-resistance sensors, such as CdZnTe-, 3He- or HPGe detectors, piezo devices, toxin detection and etс.

The HVPS124 module fully regulated and programmable outputs of 0 to 2000 volts are available in positive polarity. They based of micro-power DC to high voltage DC converters feature low EMI/RFI due to a magnetic free design.

Modules are available in two types. Module HVPS124-3V powered from 3.0 V to 5.5 V, module HVPS124-5V powered from 4.5 V to 15 V.

Low power consumption and light weight, with a case height of less than 7 mm, allows the use of a module for portable, battery powered equipment.

Voltage monitoring is provided at a 1000:1 ratio. Soft-start high voltage ramp-rates are designed in to further protect sensitive detectors to support long-term reliability.

Features

  • Low power consumption
  • Lidht weight
  • Small sizes

Applications

  • Bias supply to semiconductor detectors
  • Bias supply to toxin detectors
  • Bias supply to piezo devices

Specifications

Basic

  • Output voltage 5V … 2000 V
  • Output polarity positive
  • Output current 2 µA
  • Output ripple and noise 10 mVpp

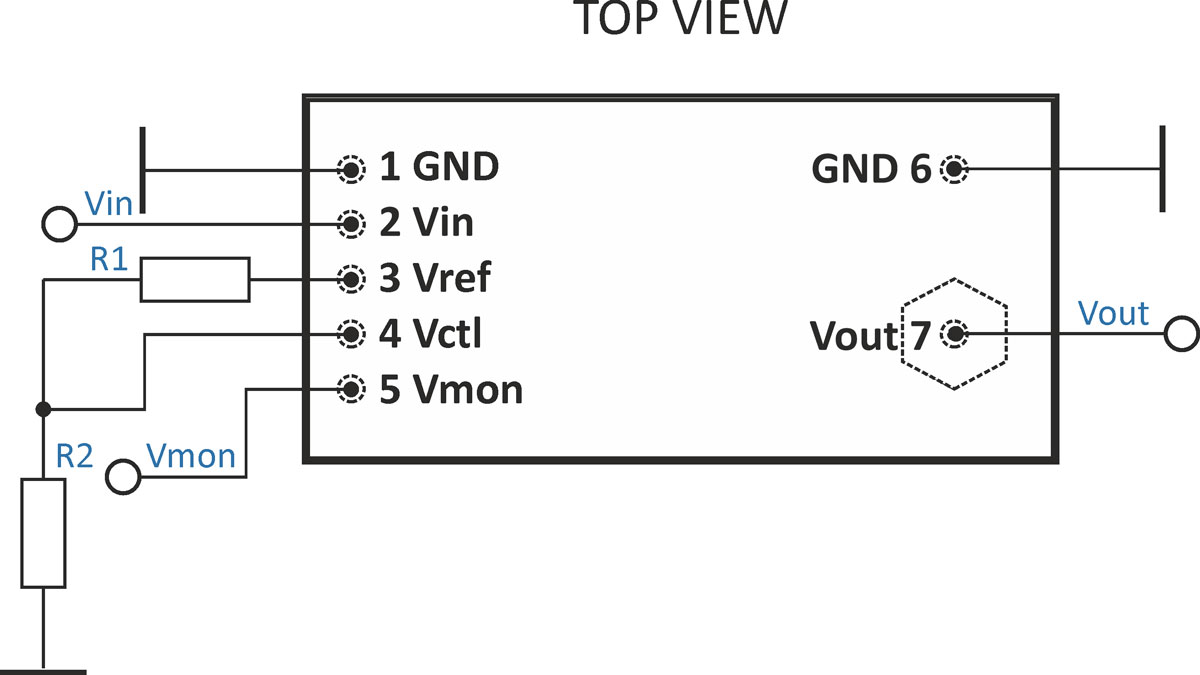

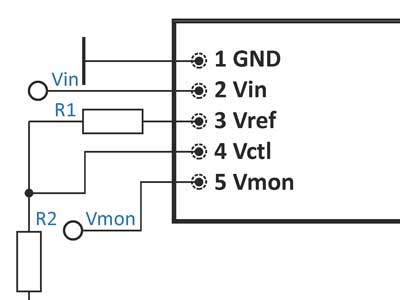

  • Reference voltage 2.048 V
  • Control voltage range 0 V … 2.048 V
  • Control voltage transfer factor 1000
  • Monitor output impedance 50 Ω
  • Operation Temperature -10°C to +60°C

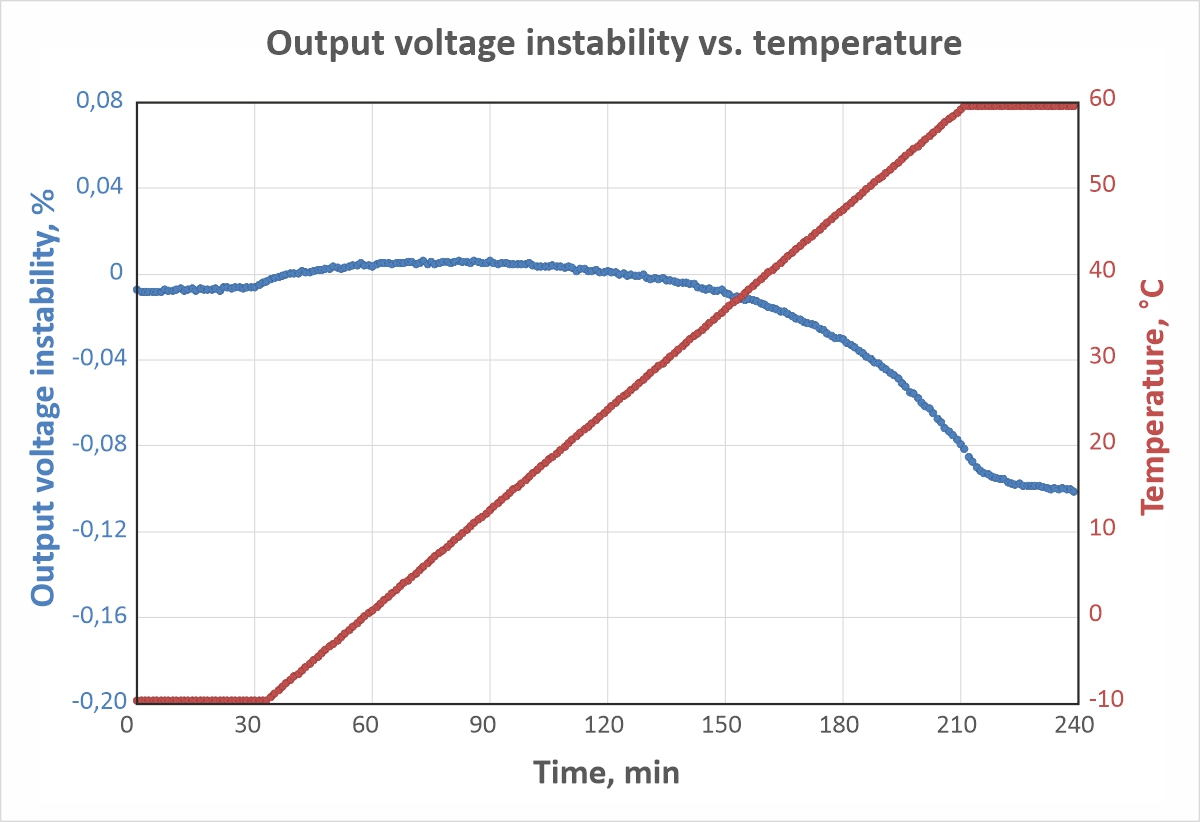

  • Temperature instability ± 100 ppm/°C
  • Long-term instability < 100 ppm/hr
  • Startup time < 5 sec

Power Requirements

  • Input voltage
    • HVPS124-3V 3.0 V … 5.5 V
    • HVPS124-5V 4.5 V … 15 V
  • Input current
    • HVPS124-3V ≤ 14 mA
    • HVPS124-5V ≤ 7 mA
  • Quiescent current
    • HVPS124-3V ≤ 1.4 mA
    • HVPS124-5V ≤ 0.7 mA

Mechanical

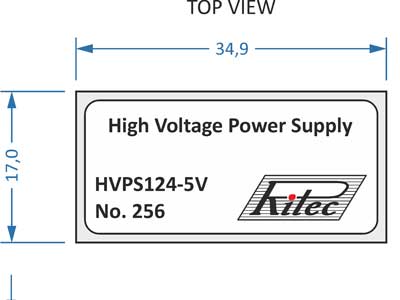

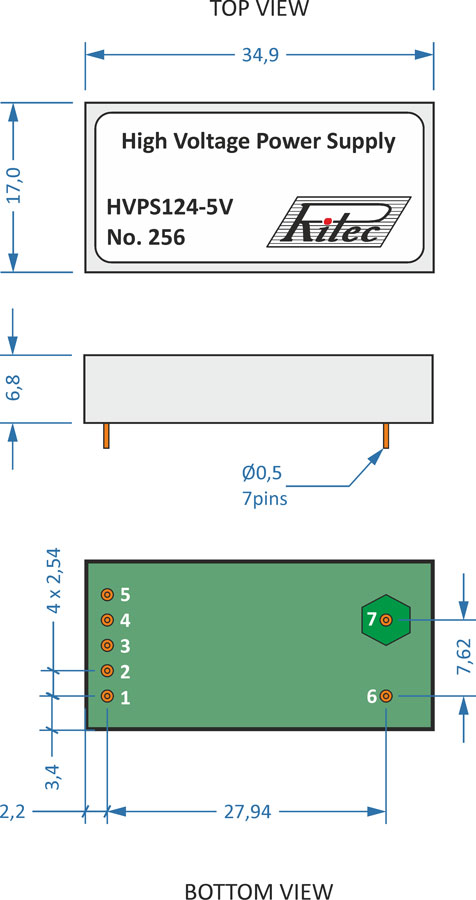

  • Dimensions 35 mm x 17 mm x 7 mm
  • Weight ≤ 6 g gram
