μSPEC

Gamma-Radiation CdZnTe Micro Spectrometer

µSPEC

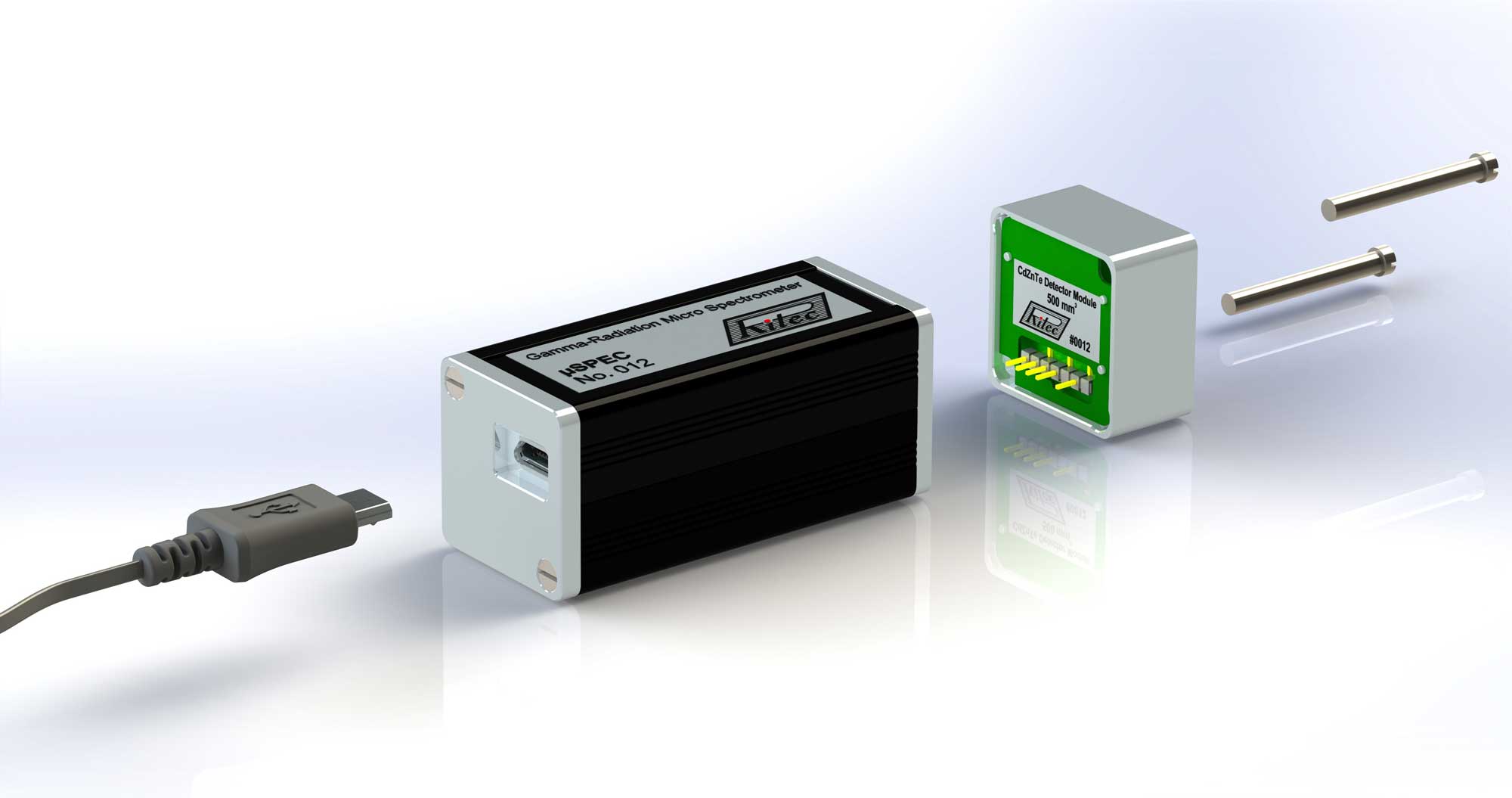

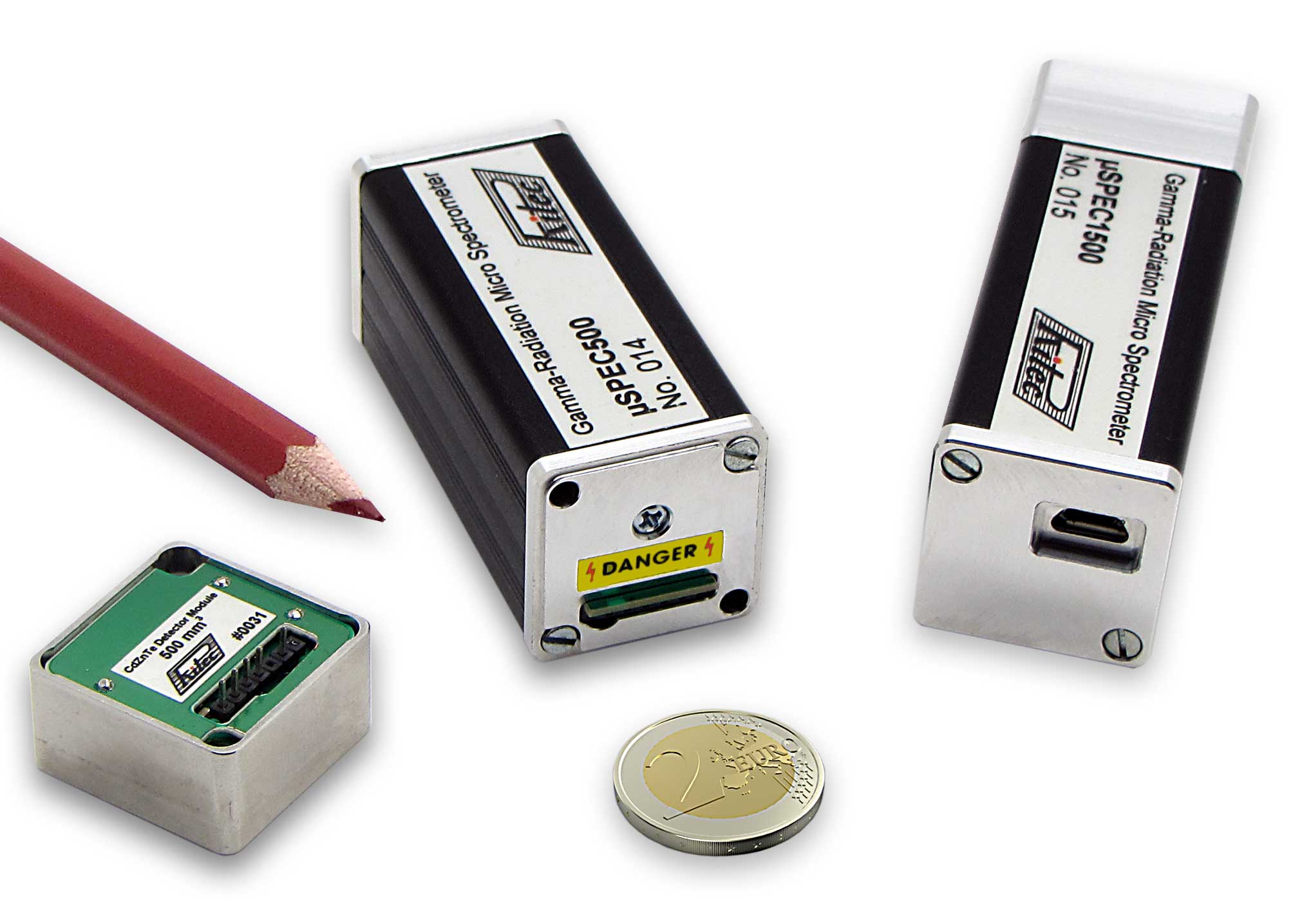

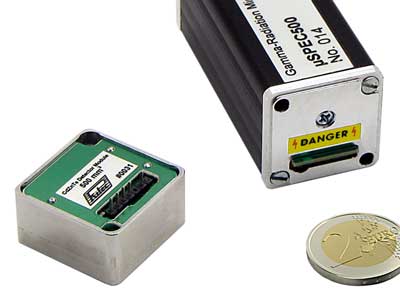

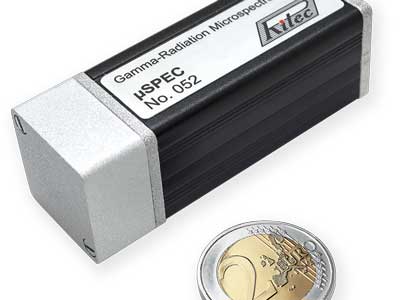

Gamma-Radiation CdZnTe Micro Spectrometer is a high performance device based on application of room temperature operating CdZnTe semiconductor detectors and a very small and low consuming digital multichannel analyzer (MCA) MicroMCA527 (GBS-Elektronik GmbH). The microspectrometer allows measuring gamma-radiation spectra and storing it for processing in a PC through the USB port. It is a self-sufficient device and consists of two modules - a base MCA module μSPEC/μSPEC+ and a replaceable detector module.

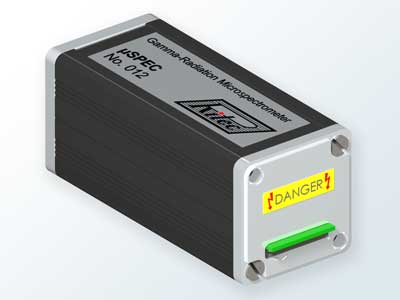

The base module contains an amplifier, a digital signal processor, a high voltage power supply of the detector, a low voltage power supply and computer interface.

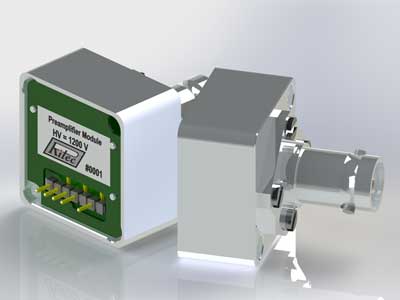

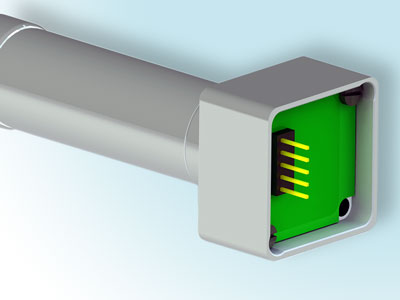

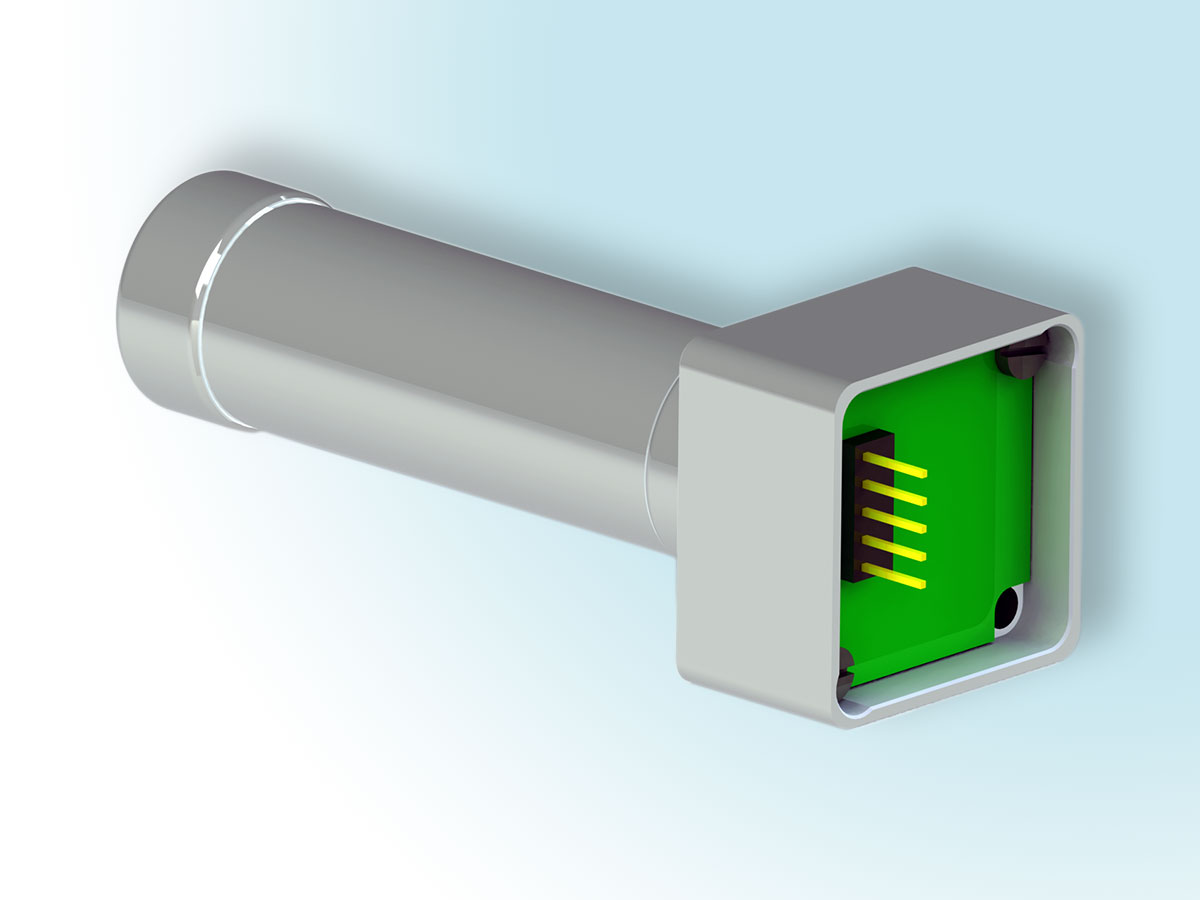

Exchangeable detector modules contain a charge sensitive preamplifier and usually a high quality CdZnTe detector. There are detector modules with different CZT detector volumes from 5 mm3 to 1600 mm3. In addition, scintillation detector exchangeable modules are presented.

The microspectrometer is communicated and powered by a PC via USB port. It is made to operate under control of MS Windows based GBS WinSPEC for Inspectors free of charge software.

Features

  • Very compact
  • Replaceable CdZnTe detector modules
  • High energy resolution and efficiency
  • High count rate capability
  • USB powered
  • Easy-to-use

Applications

  • Gamma-radiation spectroscopy
  • Environmental monitoring
  • Nuclear power plants
  • Nuclear material flow monitoring
  • Home land security
  • Unmanned aerial vehicle

Gallery

Specifications

Basic

  • Detector type CdZnTe quasi-hemispherical detector
  • Detector volumes
    • µSPEC60 with detector module DM6060 mm3
    • µSPEC500 with detector module DM500500 mm3
    • µSPEC1500 with detector module DM15001600 mm3
    • µSPEC310/XX/A
      with detector module DDM310/XX*/A      from 1 mm3 to 60 mm3
    • µSPEC500/A with detector module DM500/A500 mm3
    • µSPEC1500/A with detector module DM1500/A1600 mm3
  • Energy range 20 keV to 3.0 MeV
  • Energy resolution (FWHM) at 662 keV@25°C
    • µSPEC60< 2.0%
    • µSPEC500< 2.2%
    • µSPEC1500< 3.0%
    • µSPEC310/XX/A
    • for detectors volume 5 mm3…20 mm3< 1.5%
    • for detectors volume 60 mm3< 2.0%
    • µSPEC500/A< 2.0%
    • µSPEC1500/A< 3.0%
  • Maximal throughput > 100 kcps
  • Number of channels
    • with base MCA module µSPECup to 4k
    • with base MCA module µSPEC+up to 16k
  • Shaping time
    • with base MCA module µSPEC0.1 µs to 2 µs, step 0.1 µs
    • with base MCA module µSPEC+0.1 µs to 25.5 µs, step 0.1 µs
  • Flat top time 0 µs to 15 µs, step 0.1 µs
  • PZC adjustment automated
  • Power supply USB, 4.5 V … 5.2 V, 100 mA max
  • Connector Micro USB, A or B type

Mechanical

  • Dimensions without removable probe 25 mm x 25 mm x 72 mm
  • Connecting cable length
    µSPEC310/XX/A, µSPEC500/A, µSPEC1500/A     up to 20 m
  • Weight
    • µSPEC6060 gram
    • µSPEC50065 gram
    • µSPEC150070 gram
    • μSPEC310/XX/A with 0.2 m cable100 gram
    • µSPEC500/A with 0.2 m cable140 gram
    • µSPEC1500/A with 0.2 m cable160 gram
  • Operation temperature range 5°C … 50°C
  • Humidity < 90%, non condensing
  • IP protection class IP00

µSPEC Modules

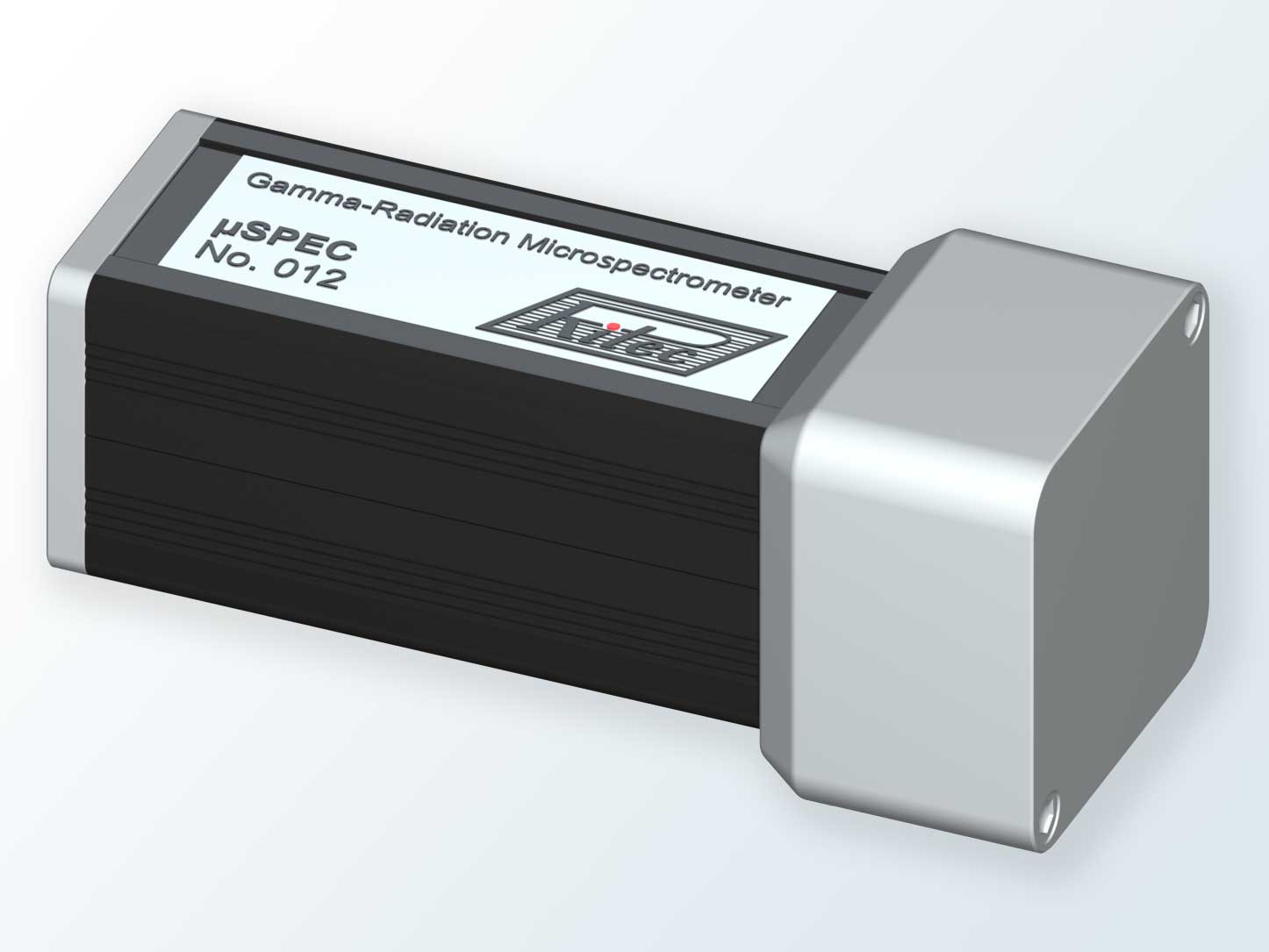

Gamma-Radiation CdZnTe Micro Spectrometer with Large Volume CdZnTe Detector

µSPEC4000

Specification

  • Detector type CdZnTe quasi-hemispherical
  • Detector volume 4000 mm3
  • Energy range 20 keV to 3.0 MeV
  • Energy resolution (FWHM) at 662 keV < 4%
  • External dimensions 35 mm x 35 mm x 77 mm
  • Weight 100 gram
  • Other parameters are the same as for μSPEC60/500/1500

Clustered high efficiency gamma-radiation spectrometers

MultiSPEC

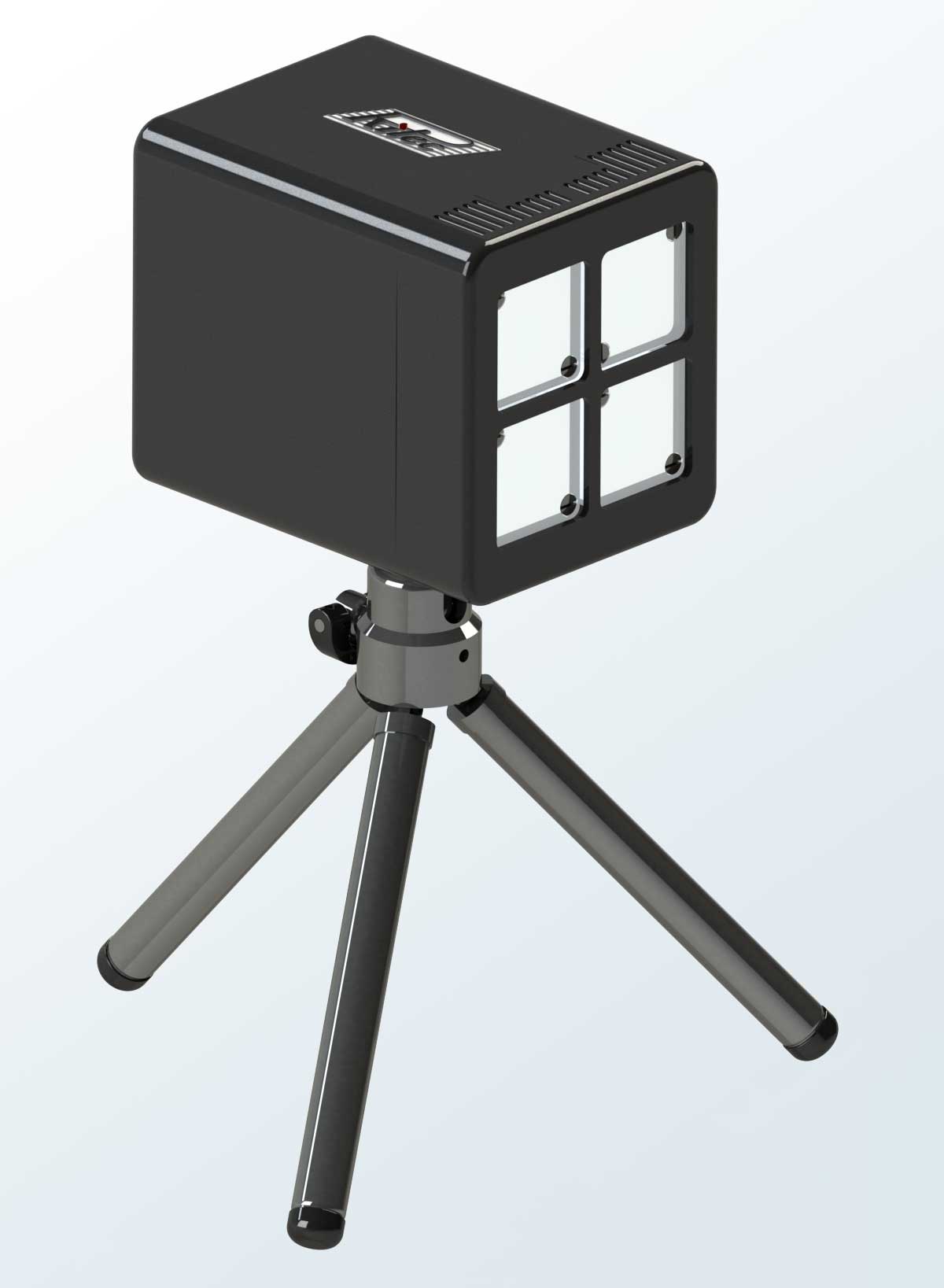

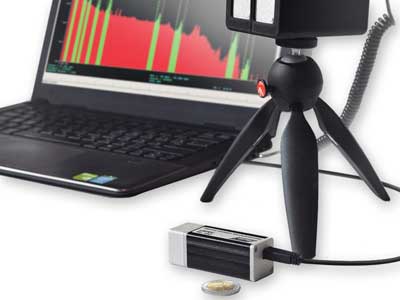

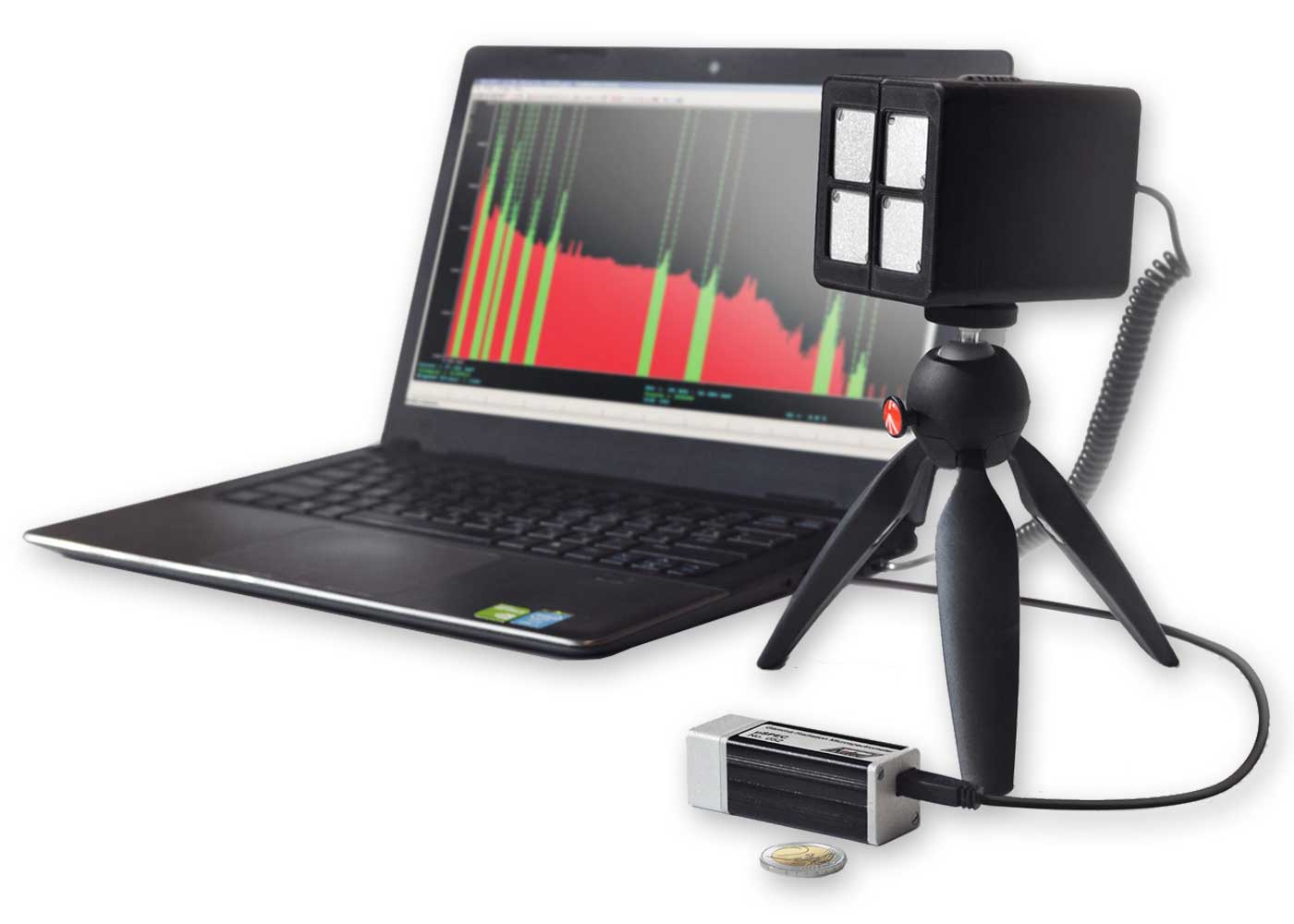

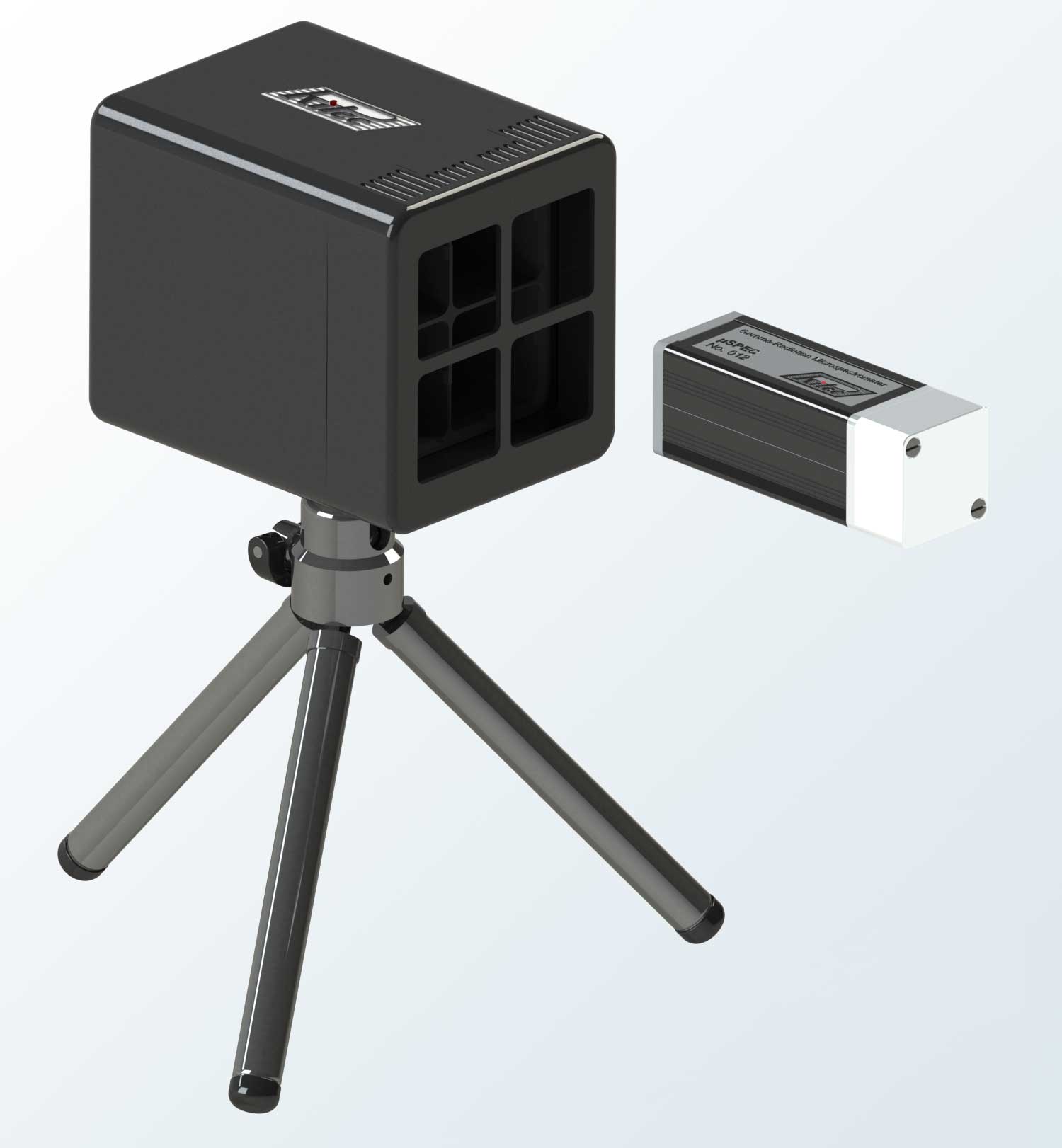

Clustered high efficiency gamma-radiation spectrometers MultiSPEC2000 / MultiSPEC6000 are based on application of the serial microspectrometers. It is an assembly of 4 serial microspectrometers combined by a special holder. All microspectrometers work in parallel, creating one common spectrum. For the collection and processing of the obtained spectra a special MS Windows based GBS software WinSPECx16 is used. Clustered spectrometer is communicated and powered by a PC via USB port. Spectrometers holder can be mounted on a mini tripod.

Specification

  • Detector type CdZnTe quasi-hemispherical
  • Total detector volume
    • MultiSPEC20002000 mm3 (4 x μSPEC500)
    • MultiSPEC60006400 mm3 (4 x μSPEC1500)
  • Energy resolution (FWHM) at 662 keV
    • MultiSPEC2000< 2.5%
    • MultiSPEC6000< 3.0%
  • Power supply USB, 4.5 V….5.2 V, 400 mA max
  • Connector micro USB, B type
  • Dimensions without USB cable and tripod 66 mm x 75 mm x 88 m
  • Weight without USB cable and tripod 520 gram (4 x µSPEC500)

Accessories

Downloads

pdf
2.0 MB

µSPEC
User Guide

pdf
2.7 MB

µSPEC
Leaflet

pdf
1.1 MB

µSPEC500
3D Drawing

pdf
0.8 MB

µSPEC4000
3D Drawing

pdf
2.3 MB

MultiSPEC
3D Drawing

pdf
0.3 MB

DM60/500/1500
3D Drawing

pdf
0.4 MB

DM310/A
3D Drawing

pdf
0.6 MB

DM500/A
3D Drawing

pdf
0.4 MB

PM120
3D Drawing

pdf
1.9 MB

Holder
3D Drawing

pdf
2.1 MB

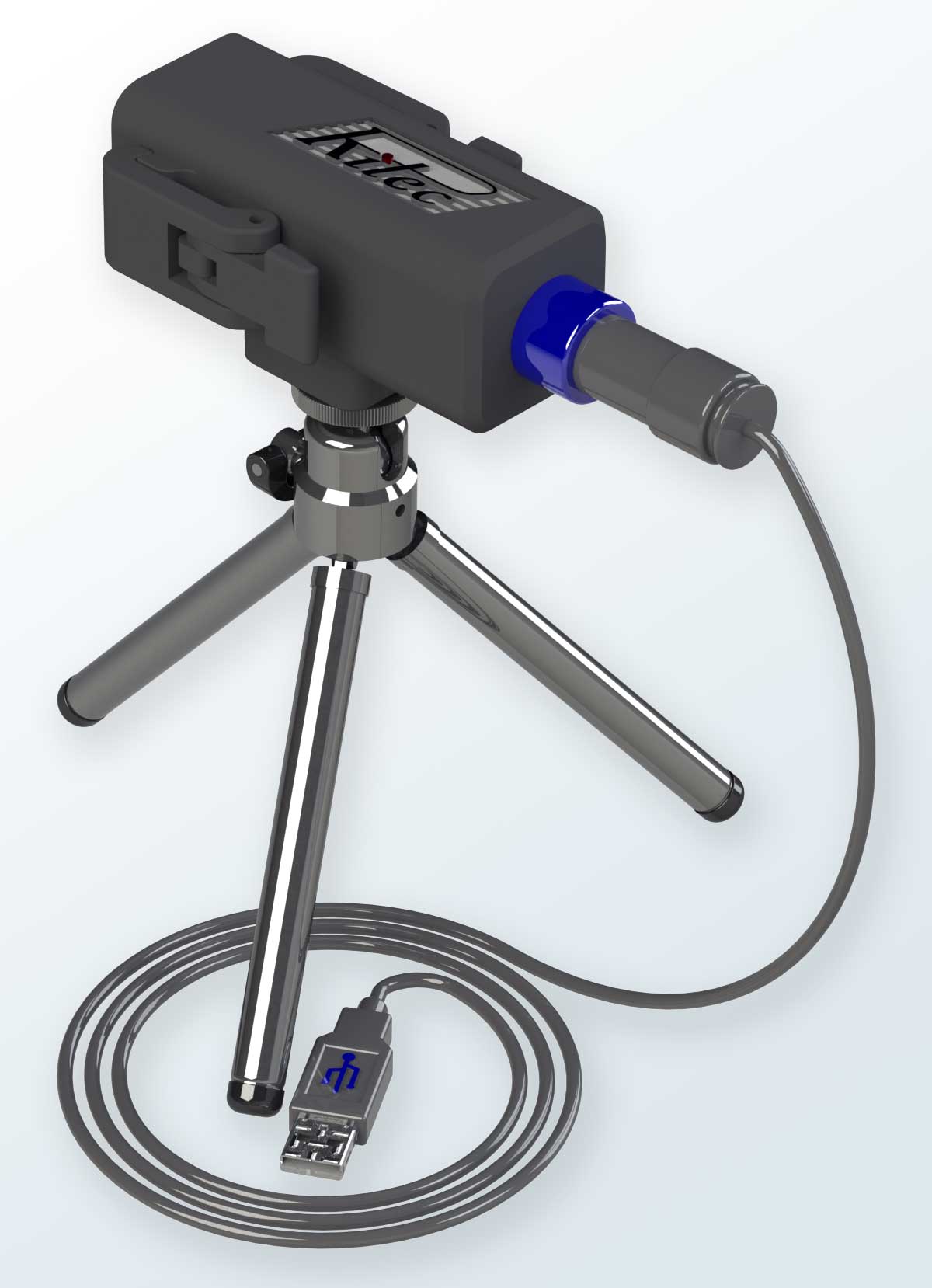

Waterproof Holder
3D Drawing

pdf
0.9 MB

DM-BGO / DM-CSI
Preliminary Specification

You will need Adobe Acrobat Reader software installed on your computer to view the 3D Drawings documents. Adobe Acrobat Reader is available FREE at www.adobe.com. More information about displaying 3D models in PDFs you can find here.

Please, fill in all information and we'll send download link to provided e-mail.

Download link sent
